Our Electronic Configurations
Explore our curated electronic configurations for a range of tones, from vintage warmth to modern clarity. Each setup is designed for optimal sound and performance.

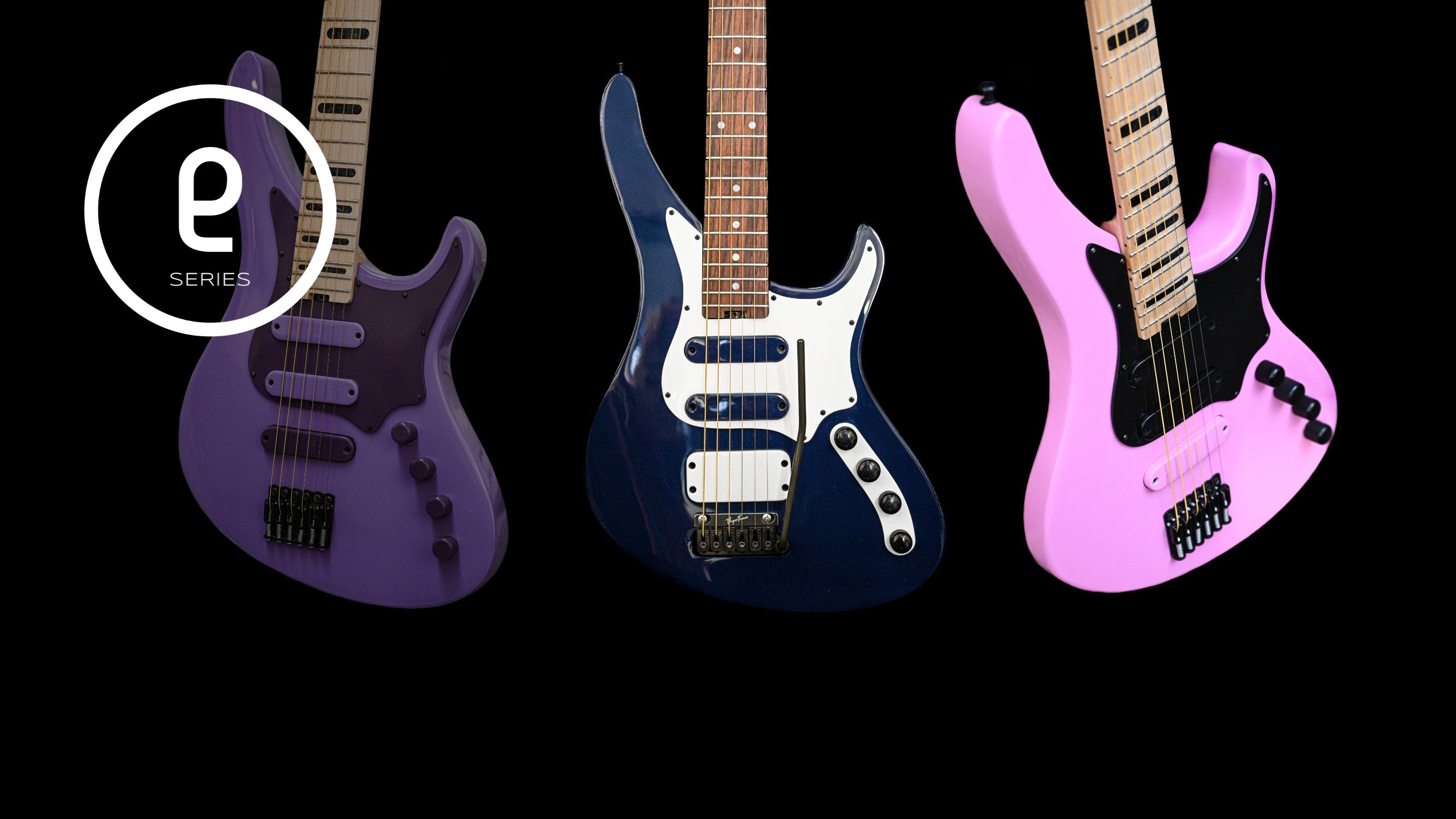

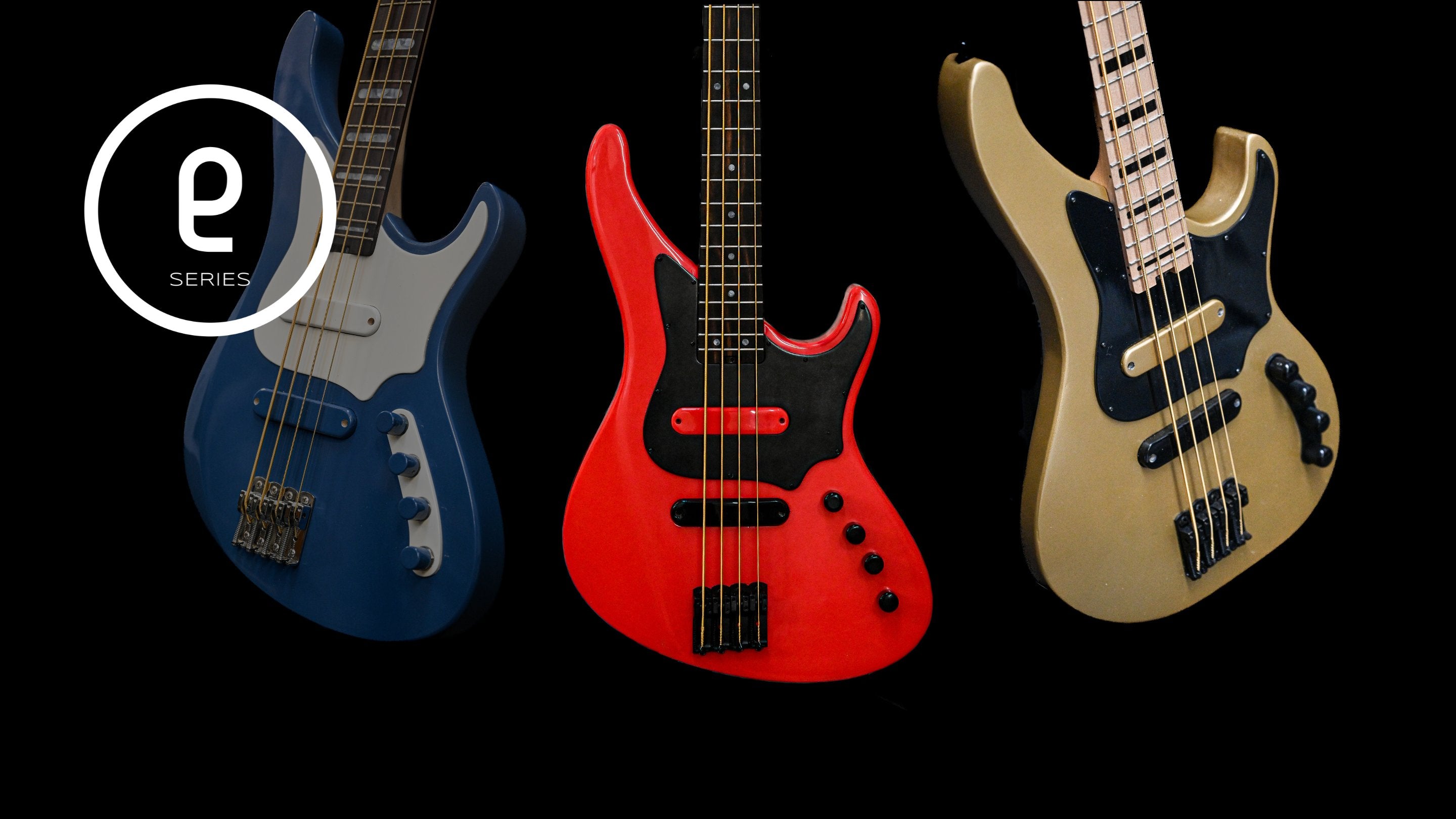

Classic
The Classic Electronics Configuration goes along our E-Series and features our AURA II pickups. It’s a simple setup with single-coil or split-coil pickups, delivering the warm, rounded tones that defined blues, rock, and funk. Simple volume and tone controls keep it intuitive and authentic.
Pickups
2 Belforti AURA II-J
A blend of classic and modern jazz bass, featuring .42 poly wire, scattered winding, and Alnico 5 magnets for a balanced, dynamic tone.
OR
1 Belforti AURA II-S / 1 Belforti AURA II-J
An inline split-coil with .42 poly wire, scattered winding, and Alnico 5. In the neck position, it delivers classic split-coil warmth; paired with an AURA II-J bridge pickup, it offers exceptional versatility.

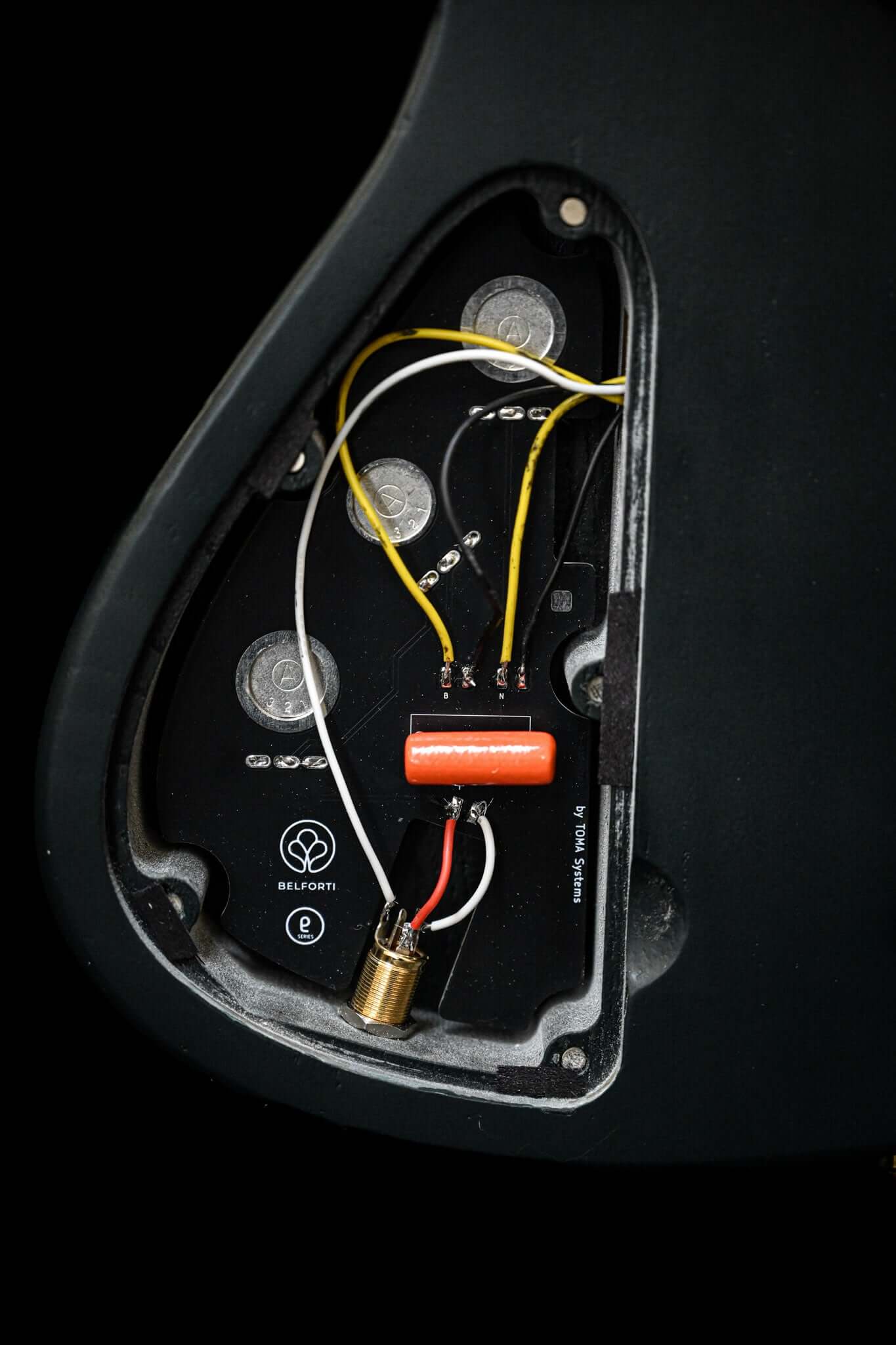

Circuit
- Layout
Dual Volume / Master Tone
- Pots
Linear CTS 250K & No Load Tone Pots
- Capacitor
.047 MFD 200V Orange Drop
- Jack
Pure Tone Mono

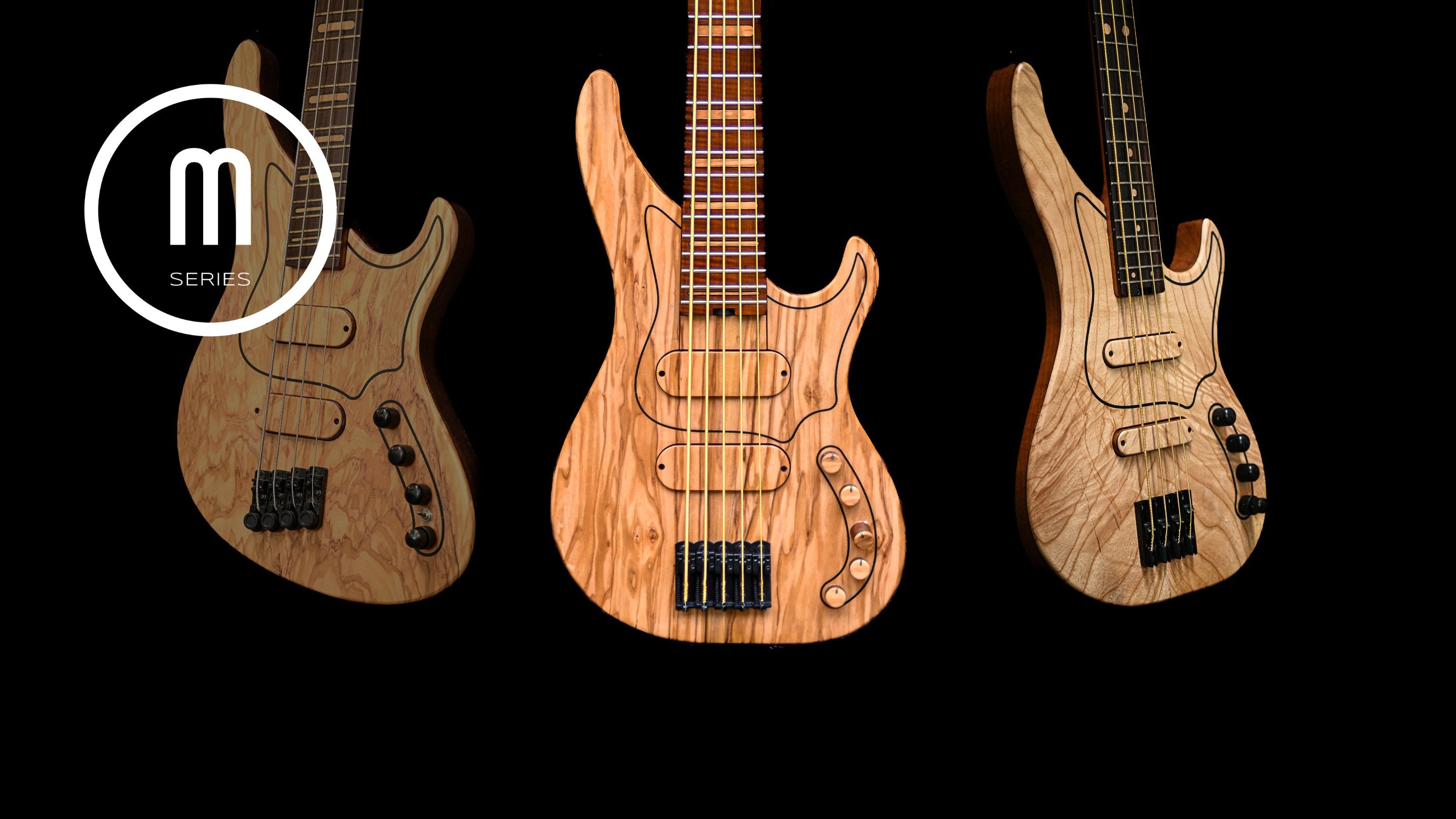

Modern
The Modern Electronics Configuration goes along our M-Series and features AURA III pickups and a Delano Sonar 3-band EQ, this setup offers a wide tonal range, from deep warmth to crisp highs, with precise sound shaping for any genre
Pickups
2 Belforti AURA-III J
A stacked dual-coil pickup with Alnico 5 magnets and scattered winding, delivering single-coil clarity without hum. It offers bright, defined tones with punchy mids, perfect for jazz, funk, and rock.
OR
2 Belforti AURA-III M
A side-by-side dual-coil pickup with Alnico 5 magnets and scattered winding, delivering a thick, powerful tone with strong low-end. Ideal for heavy rock, metal, and genres needing a bold bass presence.
Circuit
- Layout
Volume - Blend
Bass / Mid / Treble
Mid Frequency Switch
Active / Passive Switch
- Preamp
Delano Sonar 3 MS/E
- Jack
Pure Tone Stereo

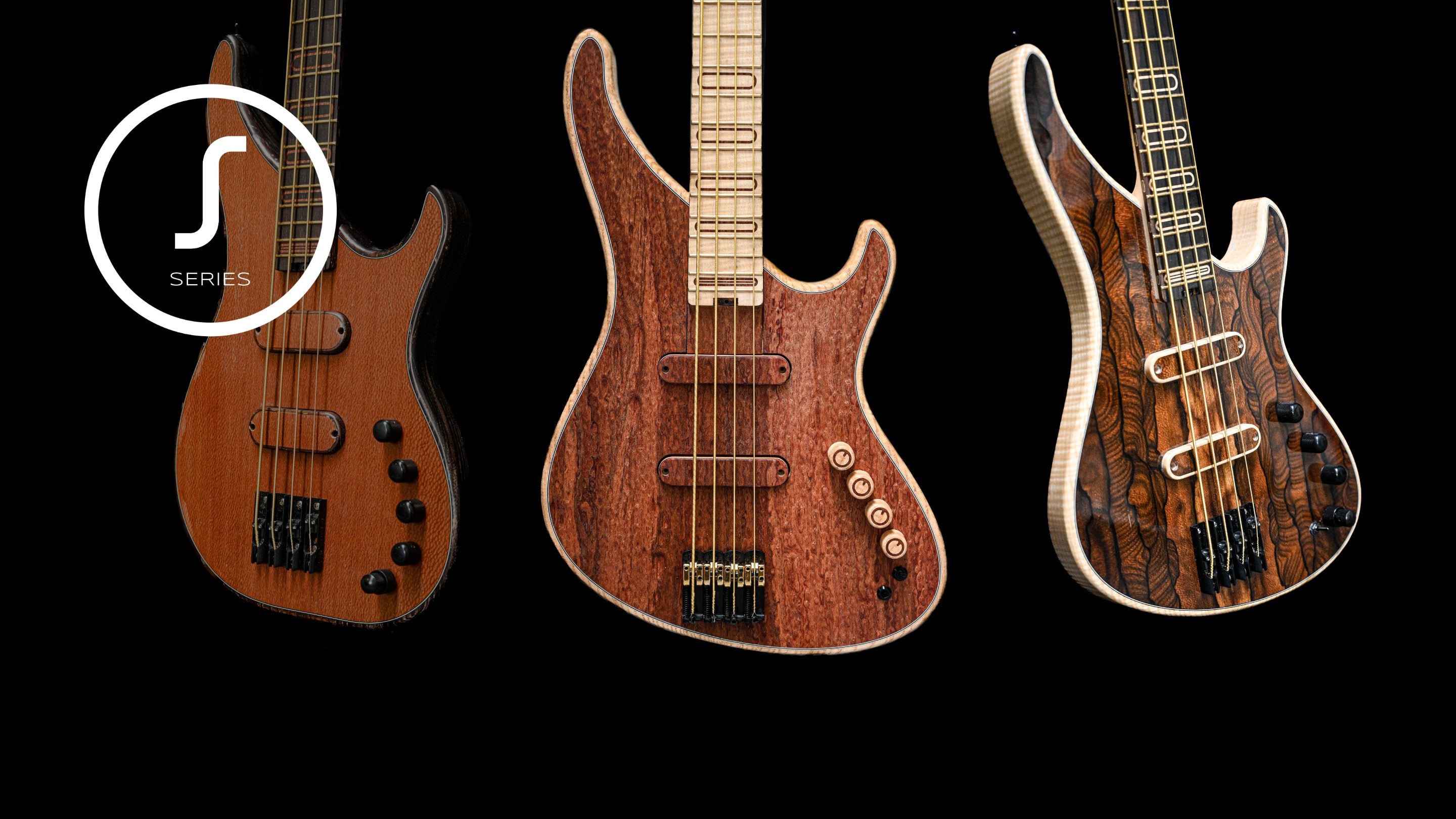

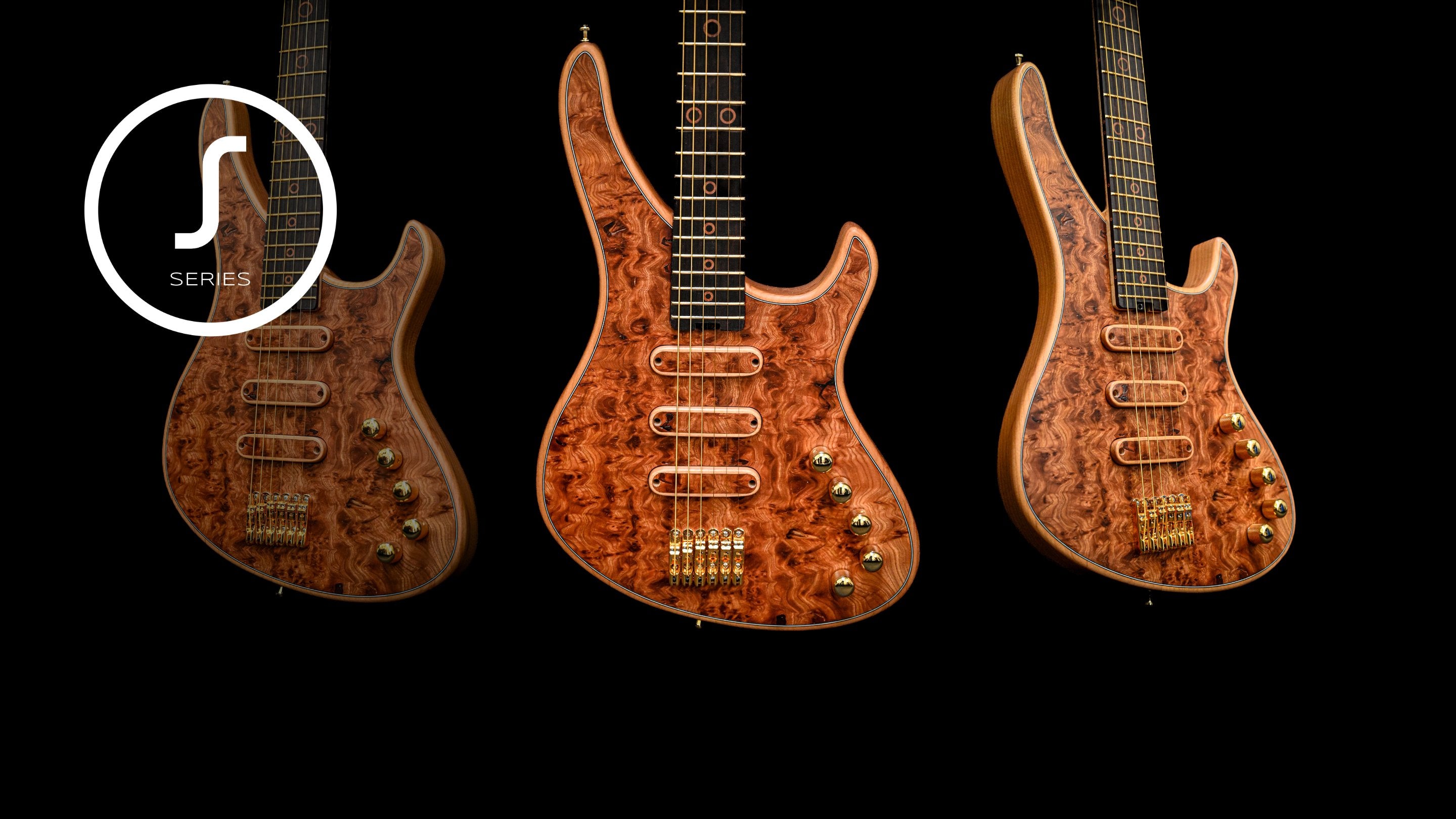

Ultra
The Ultra Electronics Configuration goes along our S-Series and features AURA IV Pickups and a Flexcore EQ, this setup delivers exceptional tonal range and precision for the most demanding musicians. The Ultra Configuration represents the pinnacle of our guitar electronics.
Pickups
2 Belforti AURA IV-J
A stacked dual-coil pickup with Alnico 8 pole pieces and scattered winding for high output, clarity, and punchy mids. Noise-free with dynamic highs, it’s perfect for genres demanding precision and detail.
OR
2 Belforti AURA IV-M
A side-by-side dual-coil pickup with Alnico 8pole pieces and scattered winding for a thick, aggressive tone with strong low-end. Perfect for rock and metal, it delivers bold, authoritative bass that cuts through the mix.
Circuit
- Layout
Dual Volume / Master Tone
Stacked Bass / Treble
Low Mid
Active / Passive Switch
Coil Tap Switch
Mid Frequency Switch
- Preamp
FLEXCORE SYSTEM 3 band EQ
9/18V
- Jack
Pure Tone Stereo
