Pickups Unveiled

The Mechanics of Pickups

To truly appreciate the impact of pickups on the sound of electric guitars and basses, it's essential to understand their basic mechanics. At their core, pickups are transducers - devices that convert energy from one form to another. In the case of guitar and bass pickups, they transform the mechanical energy of vibrating strings into electrical energy, which can then be amplified and shaped into the rich sounds that resonate from our speakers.

How Pickups Work

Magnetic Field and Vibration: Pickups consist of magnets (either magnetized pole pieces or a bar magnet under pole pieces) that create a magnetic field around the strings. When a string, typically made of a ferromagnetic material, vibrates within this magnetic field, it disturbs the field.

Induction and Signal Generation: This disturbance alters the magnetic flux around the pickup, inducing an electrical current in the pickup's coil. This current is a direct electrical representation of the string's vibration, with factors such as vibration frequency, amplitude, and harmonic content all captured in this signal.

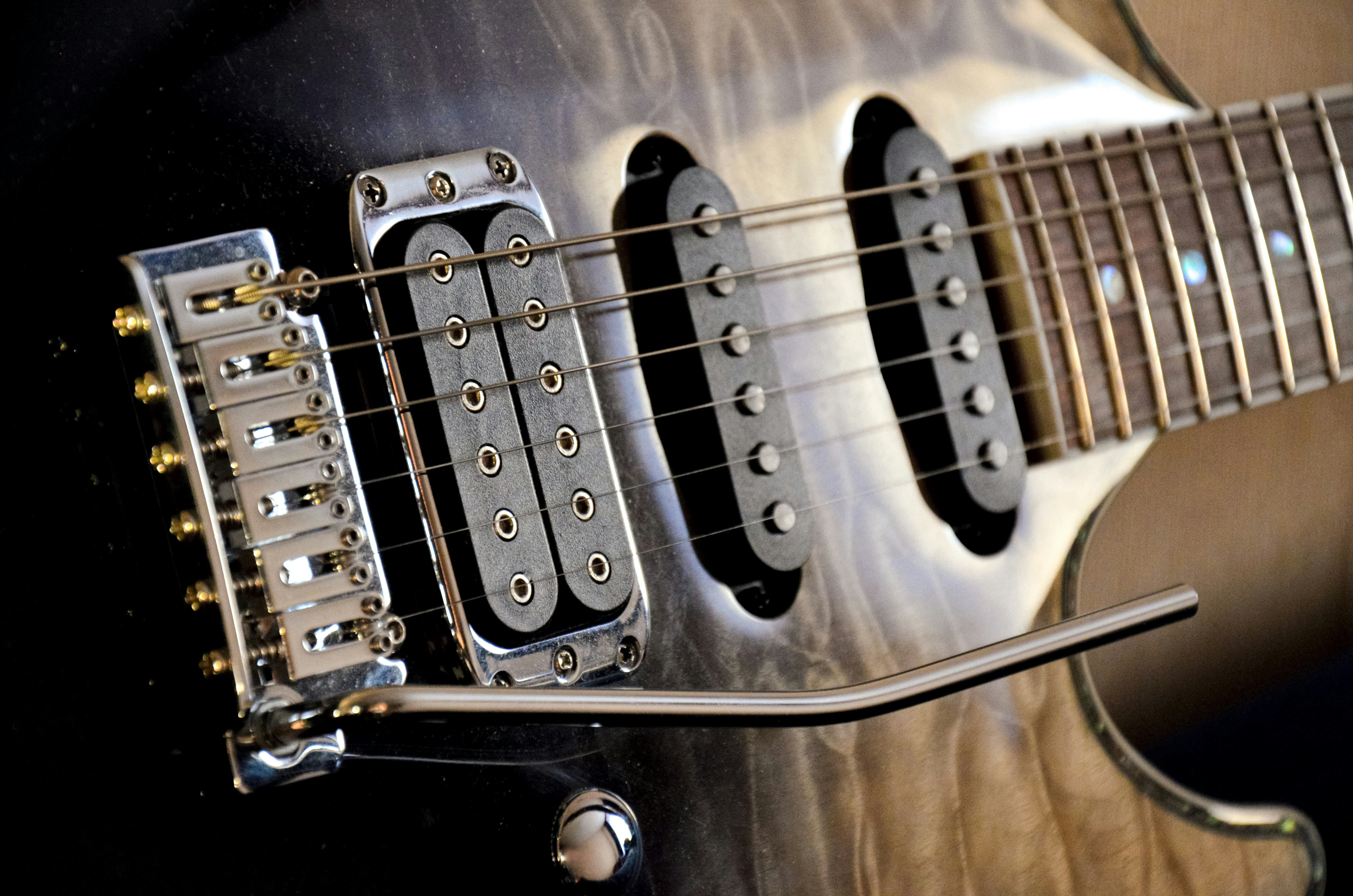

Single-Coil vs. Humbucker

Single-Coil Pickups: These are characterized by a bright, crisp sound. They consist of a single coil of wire wrapped around the magnetic pole pieces. However, they are prone to picking up electromagnetic interference, leading to a characteristic hum, especially in environments with electronic noise.

Humbucking Pickups: Invented to counteract the hum associated with single-coil pickups, humbuckers use two coils wound in opposite directions. This configuration cancels out the electromagnetic interference that single coils pick up, resulting in a thicker, warmer tone, which is less prone to noise.

The Role of Pickup Position

Positional Variance: The position of the pickup on the body of the instrument also significantly affects the sound. Pickups placed near the neck (neck pickups) capture more of the string's fundamental frequencies, producing a warmer tone. In contrast, bridge pickups, located closer to the bridge where the string's vibration is tighter and more focused, yield a brighter, more trebly sound.

Active vs. Passive Pickups

Passive Pickups: These are the traditional type of pickups, relying solely on the magnetic field and the coil for signal generation. They are known for their dynamic response and characteristic warmth.

Active Pickups: These pickups include a preamp powered by a battery. The preamp boosts the signal, allowing for higher output, reduced noise, and more tonal control right at the pickup level. Active pickups are known for their clarity and punch, especially in high-gain settings.

Through this intricate dance of magnetism and electricity, pickups play a crucial role in defining the voice of an electric guitar or bass. The choice of pickup type, its construction, and placement open up a world of tonal possibilities, allowing musicians and luthiers to tailor the instrument's sound to their exact preferences. In the following sections, we'll explore the rich history of these devices and the various types available to artists today.

A Historical Perspective on Pickups

The history of guitar and bass pickups is a fascinating journey through innovation, experimentation, and the relentless pursuit of musical expression. This evolution mirrors the broader story of modern music, with each advancement in pickup technology opening new sonic frontiers.

The Early Days

The Birth of Electromagnetism in Music: The concept of using electromagnetism to convert string vibrations into electrical signals dates back to the early 20th century. The first pickups were rudimentary, often just a single coil of wire wrapped around a magnet, but they laid the groundwork for all modern designs.

The Rise of Electric Guitars

1930s-1950s: The electric guitar began to take shape in the 1930s. Early pickups, like those found on the Rickenbacker “Frying Pan” lap steel guitar and Gibson's ES-150, were pivotal in defining the electric guitar's role in jazz and blues. These pickups were typically single-coil designs, known for their bright, clear sound.

The Humbucking Revolution

1950s-1960s: The invention of the humbucking pickup by Gibson engineer Seth Lover in 1955 marked a significant milestone. This new design greatly reduced the hum and noise that plagued earlier single-coil pickups, and it brought a richer, fuller tone that quickly became a staple in genres like rock and roll and blues.

The Era of Experimentation

1970s-Present: The later part of the 20th century saw a burst of creativity in pickup design. Manufacturers experimented with active electronics, multi-coil configurations, and new materials like ceramic magnets. This era birthed a variety of distinct pickup voices, from the sharp attack of active pickups favored in metal to the nuanced warmth of modern jazz bass pickups.

Digital Age and Beyond

21st Century: The digital age has ushered in advanced pickup technologies, including digital modeling pickups capable of emulating a wide range of guitar tones. The exploration of new materials and designs continues, driven by a blend of tradition and technology.

Throughout this history, what stands out is the pickup's role as a bridge between the musician and their instrument's electronic voice. From the jazz boxes of the '30s to the high-gain shred machines of the modern era, pickups have been integral in shaping the sound and style of guitarists and bassists across genres. The next section will delve into the various types of pickups available today, each carrying a piece of this rich history in its design and sound.

Types of Pickups

In the world of electric guitars and basses, pickups play a crucial role in defining an instrument's voice. There's a wide variety of pickups available, each with unique characteristics that cater to different playing styles and preferences. Let's explore some of the most common types.

Single-Coil Pickups

Characteristics: Known for their bright, clear tone, single-coil pickups have a sharp attack and a vibrant sound. They are particularly favored in genres like blues, country, and classic rock.

Examples: The Fender Stratocaster and Telecaster are iconic examples featuring single-coil pickups.

Humbucker Pickups

Characteristics: Humbuckers, designed to 'buck' the hum of single coils, offer a warmer, fuller sound. They have less high-end sparkle but more midrange and bass, making them ideal for genres like rock, metal, and jazz.

Examples: Gibson Les Paul and SG models are famous for their humbucking pickups.

P-90 Pickups

Characteristics: Sitting somewhere between a single-coil and a humbucker, the P-90 offers a more pronounced midrange with a slightly gritty character. It's versatile for various music styles, from clean jazz tones to distorted rock.

Examples: The Gibson Les Paul Junior and various other Gibson models historically featured P-90s.

Active Pickups

Characteristics: These pickups incorporate a preamp powered by a battery, offering higher output and less noise. They provide a compressed tone and are widely used in genres requiring high levels of gain, like metal.

Examples: EMG pickups are well-known in this category, often seen in guitars designed for heavier music styles.

Piezo Pickups

Characteristics: Unlike magnetic pickups, piezos are used to capture the physical vibration of the strings or the guitar body. They produce a very natural and acoustic-like tone, often found in acoustic-electric guitars and high-end basses.

Examples: Many modern acoustic guitars equipped for amplification use piezo pickups.

Bass Pickups

Single-Coil for Bass: Offer a bright and punchy tone, ideal for styles where the bass needs to cut through the mix.

Humbucker for Bass: Provide a thicker, warmer tone with more low-end, often preferred in rock and heavier music styles.

Specialized Bass Pickups: Some basses use specialized pickups like Music Man's large humbuckers or Rickenbacker's distinct single-coils, each contributing to the instrument's signature sound.

Other Variations

Noiseless Pickups: These are designed to emulate the tone of single-coils while eliminating the hum, often using stacked coils or other noise-canceling technologies.

Custom and Boutique Pickups: Many smaller companies and individual winders create custom pickups tailored to specific tonal characteristics, offering a wide range of unique sounds.

Each type of pickup has its place in the sonic landscape of music. Understanding the differences and characteristics of these pickups is key for musicians and luthiers to achieve the desired sound, whether it's the twang of a country lick, the growl of a rock riff, or the smooth groove of a jazz bassline. The next section will dive into the materials and construction of these pickups and how they impact the overall tone.

Materials and Construction of Pickups

The tone and performance of guitar and bass pickups are significantly influenced by their materials and construction. From the type of wire used for winding to the choice of magnets, each element plays a crucial role in shaping the instrument's sound.

Types of Wire

Enamel-Coated Wire: Traditionally used in vintage pickups, it has a thin insulation and yields a warm, classic tone.

Formvar Wire: With a slightly thicker coating than enamel, Formvar wire is known for its bright and clear sound, often used in vintage-style pickups.

Polyurethane-Coated Wire: Modern pickups frequently use this wire; it provides a consistent, balanced tone and is durable.

Magnet Materials

The type of magnet used in a pickup significantly influences its sound and character.

Alnico Magnets: Composed of aluminum, nickel, and cobalt, Alnico magnets are popular for their warm and smooth tonal qualities. Different types of Alnico (e.g., Alnico 2, Alnico 5) offer varying degrees of warmth, clarity, and output.

Ceramic Magnets: Known for their brighter and edgier sound, ceramic magnets are often found in high-output pickups used in heavier music genres.

Neodymium Magnets: These are newer and less common but are known for their strength and clarity while being lighter in weight.

Coil Windings

The way the wire is wound around the pickup's magnet plays a significant role in its sonic characteristics.

Scatter Winding: This irregular winding technique, often found in boutique and vintage-style pickups, results in a more open and airy tone.

Machine Winding: More consistent and precise, machine winding is used in most modern pickups, contributing to a cleaner, more focused sound.

Bobbin Construction

Material Choices: Bobbins can be made from various materials, including plastic, fiberboard, or metal, each imparting different tonal characteristics.

Shape and Size: The physical dimensions of the bobbin also affect the pickup's sound. Larger bobbins can accommodate more windings, potentially increasing output and altering the tonal balance.

Potting

Wax Potting: Many pickups are potted in a mixture of wax and resin to reduce microphonics and feedback. The potting process can slightly dampen the pickup's high-end response.

Active Circuitry

Preamps in Pickups: Active pickups include built-in preamps powered by batteries. These preamps boost the signal, reduce noise, and offer enhanced tonal shaping capabilities.

In summary, the materials and construction of guitar and bass pickups play a pivotal role in defining the instrument's voice. From the warmth of Alnico magnets in a scatter-wound single-coil to the clarity and punch of a ceramic humbucker, these elements combine to create a diverse array of sonic possibilities. Understanding these aspects helps in making informed choices about the right pickups for a particular playing style or desired sound. The following section will delve into the nuances of pickups specifically designed for guitars versus those for basses, highlighting their distinctive tonal characteristics.

Guitar Pickups vs. Bass Pickups

While both guitar and bass pickups operate on the same fundamental principle of converting string vibrations into electrical signals, there are distinct differences in their design and tonal characteristics due to the different roles these instruments play in music. Understanding these differences is crucial for musicians and luthiers to make informed decisions about pickup selection.

Tonal Range and Frequency Response

Guitar Pickups: Designed to capture a wider range of frequencies, guitar pickups typically emphasize the mid to high frequencies. This is crucial for ensuring the guitar cuts through the mix, delivering everything from warm, rounded tones to sharp, biting sounds.

Bass Pickups: Bass pickups are engineered to handle lower frequencies effectively. They are constructed to capture the depth and richness of bass notes, providing a solid and tight low-end response while also maintaining clarity in the mid-range.

Size and Construction

Physical Dimensions: Bass pickups are generally larger than guitar pickups to accommodate the thicker and longer bass strings. This larger size allows for a wider magnetic field, essential for accurately capturing low-end frequencies.

Coil Windings: The winding of bass pickups often differs from guitar pickups to suit their frequency range. Bass pickups might have more windings to increase their sensitivity to lower frequencies.

Magnetic Field

String Spacing: The spacing of the strings on bass guitars is wider than on standard guitars, requiring a different magnetic field spread in the pickups. This often leads to different pole piece configurations between guitar and bass pickups.

Types of Bass Pickups

Precision Bass Pickups: Typically split-coil pickups, offering a punchy, mid-range heavy sound.

Jazz Bass Pickups: Usually single-coil pickups, known for their bright and clear tone, with an emphasis on the upper midrange.

Humbuckers for Bass: Offer a thicker, warmer sound with more emphasis on the low-end, often used in rock and heavier music styles.

Active Electronics in Bass Pickups

Prevalence of Active Systems: Active pickups and preamps are more common in basses than in guitars. The onboard preamps in active bass systems offer additional control over tone shaping, particularly beneficial for bass frequencies.

Role in Musical Context

Guitar's Harmonic Complexity: Guitar pickups are often designed to articulate the harmonic complexity of chords and lead lines, requiring a nuanced response to string dynamics.

Bass Clarity and Definition: Bass pickups focus on delivering a clear, defined sound even at lower frequencies, which is crucial for maintaining the rhythm and foundation in a band's sound.

In conclusion, while guitar and bass pickups share similar technological foundations, their design and application differ significantly, reflecting the distinct musical roles of each instrument. Guitar pickups are crafted for a broad range of frequencies with a focus on mid to high tones, while bass pickups prioritize clarity and depth in the low-end spectrum. The next section will explore the world of custom and boutique pickups, where individual preferences and innovations further expand the tonal possibilities of these instruments.

Selecting the Right Pickup

Choosing the right pickup for your guitar or bass is a crucial decision that can significantly influence your instrument's sound and playability. With an array of options available, the selection process can be both exciting and overwhelming. This section offers guidance to help musicians make informed choices tailored to their specific needs.

Understanding Your Musical Style and Needs

Genre Considerations: Different musical styles often require different tonal qualities. For instance, jazz guitarists might prefer the smooth, warm sound of a humbucker, while a rock player might lean towards the crisp, articulate tone of a single-coil.

Bass Players' Choices: Bassists need to consider pickups that can articulate their playing style, whether it's the deep, rounded tone for jazz or a punchy, aggressive sound for rock and metal.

Experimenting with Different Types

Exploring Varieties: Experimenting with different types of pickups can provide insights into the diverse soundscapes they offer. Trying out guitars and basses with various pickups can reveal preferences you might not have been aware of.

Combining Pickups: Some players might find their ideal sound lies in a combination of different types of pickups, such as a guitar with a single-coil in the neck position and a humbucker in the bridge.

Considering the Instrument's Characteristics

Compatibility with Your Instrument: The wood type, construction, and existing electronics of your guitar or bass can influence how a pickup sounds. Ensure that the pickup choice complements these characteristics.

Modifications and Upgrades: If you're looking to modify an existing instrument, consider how different pickups might interact with the guitar's or bass's inherent qualities.

Active vs. Passive

Active Pickups: If you're looking for higher output, less noise, and more tonal control, active pickups might be the right choice. They're particularly popular among bassists and players of heavier music genres.

Passive Pickups: For those who prefer a more traditional tone and dynamic response, passive pickups are ideal. They offer a wide range of sounds from vintage to modern.

Consulting with Professionals

Advice from Luthiers and Technicians: If you're unsure about the best pickup for your needs, consulting with a professional luthier or guitar technician can provide valuable insights. They can offer recommendations based on your playing style, genre, and the specific characteristics of your instrument.

Demo Videos and Reviews: Online resources, such as demo videos and user reviews, can also be helpful in understanding the sound and capabilities of different pickups.

In conclusion, selecting the right pickup involves a mix of understanding your musical requirements, experimenting with different options, considering the instrument's characteristics, and seeking professional advice when needed. With the right choice, the pickup can become a transformative element, unlocking new tonal possibilities and inspiring fresh creativity in your playing. The next section will delve into the nuances of installing and modifying pickups, offering a guide to those looking to customize their sound further.

Installation and Modification of Pickups

Installing and modifying pickups in guitars and basses can be an enriching experience, offering musicians a way to personalize and enhance their instrument's sound. Whether you're replacing a worn-out pickup or seeking a new tonal palette, understanding the basics of pickup installation and modification is key.

Basics of Pickup Installation

Tools and Preparation: Basic tools like a soldering iron, screwdrivers, wire cutters, and a multimeter are essential. Ensure your workspace is clean and organized to avoid any damage to the instrument.

Wiring Schematics: Familiarize yourself with wiring diagrams for your specific pickup configuration. These schematics are often provided by the pickup manufacturer and can be found online.

Safety First: Remember to unplug the instrument from any amplifiers and work with caution to avoid any electrical hazards or damage to the instrument.

Step-by-Step Installation

Removing Old Pickups: Carefully unscrew and remove the old pickups. If you plan to reuse them in the future, keep all the components together and note down their original configuration.

Wiring the New Pickups: Follow the wiring schematic to solder the new pickups to the pots, switch, and output jack. Pay attention to polarity and grounding to avoid noise issues.

Mounting the Pickups: Secure the new pickups in place, adjusting their height as necessary. The distance between the pickup and the strings can significantly affect the output and tone.

Final Testing: Once installed, test the pickups before reassembling the entire guitar. Check for any unusual noises and ensure each pickup position is functioning correctly.

Modifications for Enhanced Performance

Custom Wiring Configurations: Experimenting with different wiring options, like coil splitting, phase switching, or series/parallel configurations, can yield a wide range of tones.

Active Electronics: Adding preamps or active EQ circuits can offer greater control over the tone and may require additional routing for battery placement.

Blending Different Pickup Types: Mixing different types of pickups, such as a single-coil with a humbucker, can provide a versatile range of sounds.

Considerations for Bass Pickups

Balancing Output: In bass guitars, especially those with multiple pickups, it's crucial to balance the output levels to ensure even volume across all strings and pickup settings.

Tone Tailoring: Bassists often prefer specific tonal characteristics for different playing styles. Modifications like adding a switch to bypass the tone control can offer more direct control over the sound.

Professional Help

When to Seek Professional Assistance: If you're not confident in your soldering skills or the modification is complex, it's wise to seek help from a professional luthier or guitar technician. They can ensure the job is done correctly and may offer additional insights into improving your instrument.

Modifying and installing pickups can be a rewarding way to customize your instrument. With the right tools, knowledge, and a bit of patience, you can significantly alter and improve your guitar's or bass's sound. In the next section, we'll explore the future of pickup technology, looking at emerging trends and innovations.

The Future of Pickup Technology

As we look towards the future, pickup technology continues to evolve, driven by advancements in materials science, electronics, and a deeper understanding of sound. The pursuit for the perfect tone pushes the boundaries of traditional pickup design, leading to innovations that promise to redefine the capabilities of electric guitars and basses.

Digital and Modeling Pickups

Modeling Technology: One of the most exciting developments in pickup technology is the use of digital modeling. These pickups can emulate a wide variety of guitar tones, from classic vintage to modern high-gain sounds, all within a single instrument.

Integration with Digital Effects: Future pickups might offer seamless integration with digital effects and amplification systems, allowing for unprecedented control over the sound directly from the guitar or bass.

Advancements in Materials

New Magnet Materials: Research into new magnetic materials could lead to pickups with a wider dynamic range or a more focused tonal spectrum.

Alternative Coil Materials: Explorations into different coil materials and configurations may offer new tonal possibilities, reducing noise, or enhancing certain frequencies.

Active Electronics and Connectivity

Enhanced Active Systems: We are likely to see more sophisticated active pickups with built-in DSP (Digital Signal Processing) allowing for on-the-fly tone shaping and customization.

Wireless Connectivity: The possibility of integrating wireless data transmission within pickups could enable real-time sound adjustments through external devices like smartphones or tablets.

Sustainable and Eco-Friendly Designs

Eco-conscious Manufacturing: With a growing emphasis on sustainability, future pickup designs might focus on eco-friendly materials and manufacturing processes, reducing the environmental impact while maintaining tonal quality.

Recycled Materials: The use of recycled or upcycled materials in pickup construction could become more prevalent, offering a sustainable approach to guitar and bass sound production.

Personalization and Customization

3D Printing: Advances in 3D printing technology may allow for custom-designed pickups tailored to individual players' specifications.

User-Configurable Pickups: Future designs could feature user-configurable magnetic structures or adjustable coil parameters, offering musicians the ability to fine-tune their pickup's performance to their exact liking.

Collaborations and Cross-Disciplinary Innovations

Cross-Industry Collaborations: Partnerships between music technology companies and experts in other fields, like material science or acoustics, could lead to breakthroughs in pickup technology.

AI and Machine Learning: The use of AI in designing pickups could lead to models that automatically adapt to playing styles or environments, constantly optimizing the sound for the player.

The future of pickup technology holds exciting prospects for musicians, luthiers, and tech enthusiasts alike. With each innovation, pickups are set to become more versatile, expressive, and integrated, offering musicians new avenues for creative expression. In the next section, we'll summarize the key points and conclude our exploration into the captivating world of guitar and bass pickups.

Conclusion

As we conclude our journey through the world of guitar and bass pickups, it's clear that these components are much more than just functional parts of an instrument. They are the heart and soul of the electric guitar and bass, playing a pivotal role in shaping the sound that has defined countless genres and inspired generations of musicians.

From the humble beginnings of early electromagnetic designs to the sophisticated digital and modeling technologies of today, pickups have continuously evolved, reflecting the changing needs and creative aspirations of players. The variety of pickups available today, from vintage single-coils to modern active models, offers musicians a vast palette to express their unique artistic voices.

The future of pickup technology, with its promising advancements, holds the potential to further expand these tonal possibilities. Innovations in materials, construction, and integration with digital technologies are not only enhancing the quality of sound but also pushing the boundaries of what is possible in music production and performance.

Yet, amidst this technological evolution, the essence of what makes pickups so vital to musicians remains unchanged: their ability to capture the nuanced dynamics of playing, the warmth of tone, and the character of each note. Whether you are a seasoned professional, a budding musician, or a curious enthusiast, understanding the intricacies of pickups is key to appreciating and harnessing the full potential of these remarkable devices.

In essence, the story of guitar and bass pickups is a testament to the endless pursuit of musical excellence—a quest that continues to inspire innovation and creativity in the world of lutherie and beyond. As we look forward to the future, one thing is certain: the evolution of pickups will continue to play a central role in the ever-changing landscape of music.
